1

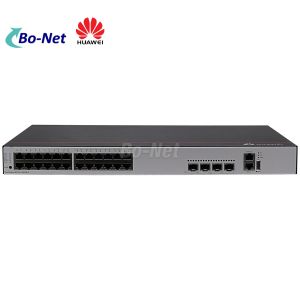

Twenty-four PoE+ 10/100/1000BASE-T ports

2

Four 1000BASE-X ports
Applicable modules: * GE optical module
* GE-CWDM optical module
* GE-DWDM optical module
* GE copper module
* 10GE SFP+ optical module (only used for stack connection, OSXD22N00 not supported, applicable in V200R019C10
and later versions)
* 1 m and 3 m SFP+ high-speed copper cables (only used for stack connection, applicable in V200R019C10 and
later versions)
* 3 m and 10 m SFP+ AOC cables (only used for stack connection, applicable in V200R019C10 and later versions)
* 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, applicable in
V200R019C10 and later versions)

3

One console port

4

One ETH management port

5

One USB port

6

One PNP button
NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.
To reset the switch, press the button.
Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

7

Ground screw
NOTE: It is used with a ground cable.

8

Jack for AC power cable locking strap
NOTE: The AC power cable locking strap is not delivered with the switch.

9

AC socket
NOTE: It is used with an AC power cable.

-

-

Item

Description

Memory (RAM)

1 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Service port surge protection

Common mode: ±7 kV

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Dimensions (H x W x D)

* Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
* Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6
mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Weight (with packaging)

4.31 kg (9. lb)

Stack ports

Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions)

PoE

Supported

Rated voltage range

* AC input: 100 V AC to 240 V AC, 50/60 Hz
* High-Voltage DC input: 240 V DC

Maximum voltage range

* AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
* High-Voltage DC input: 190 V DC to 290 V DC

Maximum power consumption (100% throughput, full speed of fans)

* Not providing the PoE function: 53 W
* 100% PoE loads: 451 W (PoE: 380 W)

Typical power consumption (30% of traffic load) * Tested according to ATIS standard
* EEE enabled
* No PoE power consumption

39 W
