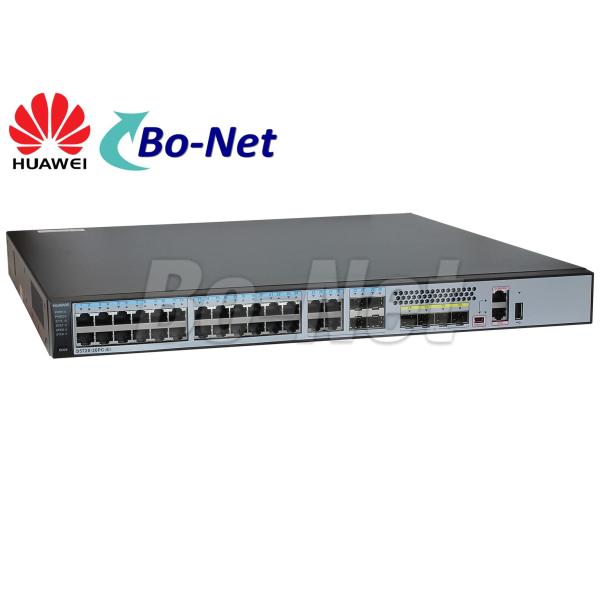

Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch

Ask Lasest Price
Brand Name :	huawei
Model Number :	S5720-36PC-EI-AC
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	200 pcs per week
Delivery Time :	3~5 working days

Add to Cart

Product Details
Company Profile

Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch

Product Code	S5720-36PC-EI-AC
Downlink Ports	28 × Ethernet 10/100/1000 ports 4 of which are dual-purpose 10/100/1000 or SFP
Uplink Interfaces	4 × Gig SFP
Forwarding Performance	78 Mpps
Switching Capacity	598 Gbit/s
Stack	Supported
Stack Ports	- Ports on the 2-port 10GE SFP+ rear interface card - Ports on the 2-port 10GE RJ45 rear interface card - Ports on the 2-port QSFP+ rear stack card
Memory (RAM)	2 GB
Flash	340 MB
Dimensions (W x D x H)	44.2 cm x 42 cm x 4.44 cm
Weight (Kg)	9.76 Kg

Product Model	S5720-P-EI	S5720-X-EI	S5720-PC-EI	S5720-C-EI
Switching Capacity	598 Gbit/s	598 Gbit/s	598 Gbit/s	598 Gbit/s
Forwarding Performance	S5720-32P-EI-AC: 48 Mpps S5720-52P-EI-AC: 78 Mpps S5720-32X-EI-AC: 102 Mpps S5720-32X-EI-24S-AC: 102 Mpps S5720-32X-EI-24S-DC: 102 Mpps S5720-50X-EI-AC: 129 Mpps S5720-50X-EI-DC: 129 Mpps S5720-50X-EI-46S-AC: 129 Mpps S5720-50X-EI-46S-DC: 129 Mpps S5720-52X-EI-AC: 132 Mpps S5720-36PC-EI-AC: 78 Mpps S5720-56PC-EI-AC: 108 Mpps S5720-36C-EI-28S-AC: 132 Mpps S5720-36C-EI-28S-DC: 132 Mpps S5720-36C-EI-AC: 132 Mpps S5720-36C-PWR-EI-AC: 132 Mpps S5720-56C-EI-48S-AC: 162 Mpps S5720-56C-EI-48S-DC: 162 Mpps S5720-56C-EI-AC: 162 Mpps S5720-56C-EI-DC: 162 Mpps S5720-56C-PWR-EI-AC: 162 Mpps S5720-56C-PWR-EI-DC: 162 Mpps S5720-56C-PWR-EI-AC1: 162 Mpps
Extended Slots	N/A		One expansion slot supporting the following functions: 2-port 10 GE SFP+ optical interface card 2-port QSFP+ dedicated stack interface card
MAC Address Table	64k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4,094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on 4,094 VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping VLAN-based transparent transmission of protocol packets MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
IP Routing	Static routes, RIPv1/v2, and RIPng OSPF, OSPFv3, IS-IS, and IS-ISv6 BGP, BGP4+, ECMP, and routing policy
Interoperability	VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)

Huawei S5720-36PC-EI-AC S5720 Series 28 Port Enhanced Gigabit Ethernet Switch
