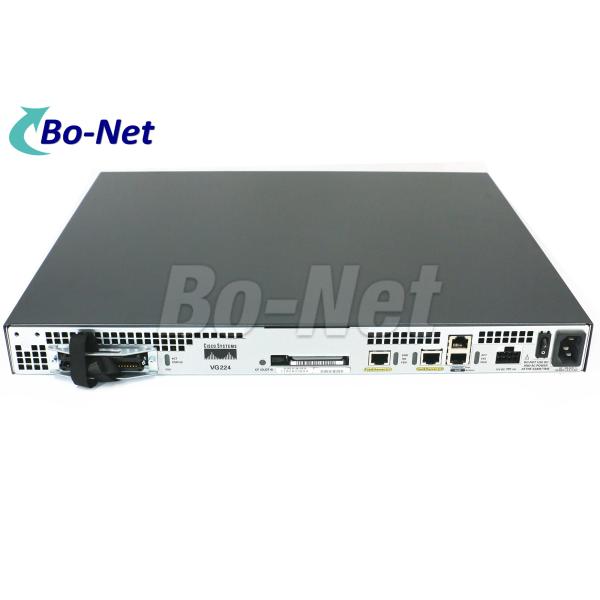

Cisco VG224 Analog 100Mbps Phone Voice Gateway Router

Ask Lasest Price
Brand Name :	Cisco
Model Number :	VG224
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

Cisco VG224 Analog 100Mbps Phone Voice Gateway Router

Cisco Original VG224 Analog Voice Phone Voice Gateway Router RJ-21 Analog Voice Interface

VG224 Voice GatewayVG224 provides 24 analog foreign exchange station (FXS) voice ports with two 10/100BASE-T ports. The chassis
has the following
interfaces:
•RJ-21 analog voice interface
•Two 10/100BASE-T ports
•External compact flash memory
•AC and DC power inputs

Characteristic	Value
Dimensions	1.75H x 17.5W x 13.5D in. (44.4 x 444.5 x 342.9 mm)
Weight	11 lb (4.106 kg) max
Input power	100 to 240 VAC, 1 A (max), 50 to 60 Hz, 70 W (max)
Maximum power surge
Input power (DC 12 volt battery) by chassis	60 W (204.7 BTU/h) ---------------------------------------------------------------------------------------------------------------------------------- Caution Do not try to use AC and DC power at the same time. If you do, the unit stops operating and you have to reboot using a single power source. ----------------------------------------------------------------------------------------------------------------------------------
MTBF	195,671 hours
Operating environment	32 to 122×F (0 to 50×C)
Nonoperating temperature	-40 to 185×F (-40 to 85×C)
Operating humidity	5 to 95%, noncondensing
Noise level	55 dB @ 3 ft

Cisco VG224 Analog 100Mbps Phone Voice Gateway Router
