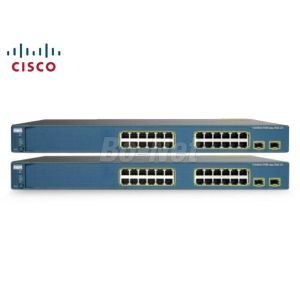

Cisco switch WS-C3560-24PS-E 3560 24 10/100 PoE + 2 SFP Enh Image

Ask Lasest Price
Brand Name :	Cisco
Model Number :	WS-C3560-24PS-E
Certification :	ISO9001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal, Alipay
Supply Ability :	100pcs per week
Delivery Time :	1~2 working days

Add to Cart

Product Details
Company Profile

Cisco switch WS-C3560-24PS-E 3560 24 10/100 PoE + 2 SFP Enh Image

Cisco switch WS-C3560-24PS-E 3560 24 10/100 PoE + 2 SFP Enh Image

● 24 Ethernet 10/100 ports and 2 SFP-based Gigabit Ethernet ports

● 1RU fixed-configuration, multilayer switch

● Enterprise-class intelligent services delivered to the network edge

● IEEE 802.3af and Cisco prestandard Power over Ethernet

● IP Services software feature set (IPS)

• Provides full IPv6 dynamic routing

Device Type	Switch
Enclosure Type	Rack-mountable - 1U
Installed Modules Qty (Max)	0 (installed) / 2 (max)
Width	17.5 in
Depth	11.8 in
Height	1.7 in
Weight	11.2 lbs
Memory
RAM	128 MB
Flash Memory	16 MB flash
Networking
Ports Qty	24 x Ethernet 10Base-T, Ethernet 100Base-TX
Data Transfer Rate	100 Mbps
Data Link Protocol	Ethernet, Fast Ethernet
Routing Protocol	RIP-1, RIP-2, HSRP, static IP routing, IGMPv3
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c
Connectivity Technology	Wired
Communication Mode	Half-duplex, full-duplex
Switching Protocol	Ethernet
MAC Address Table Size	12K entries
Status Indicators	Port status, port transmission speed, port duplex mode, system
Features	Full duplex capability, layer 3 switching, auto-sensing per device, IP-routing, power over Ethernet (PoE), auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, manageable, Redundant Power System connector, MAC address filtering, IPv6 support, Quality of Service (QoS), DHCP server, Time Domain Reflectometry (TDR)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Expansion / Connectivity
Expansion Slots Total (Free)	2 ( 2 ) x SFP (mini-GBIC)
Interfaces	24 x network - Ethernet 10Base-T/100Base-TX - RJ-45 1 x management - RJ-45
Miscellaneous
MTBF	224,100 hour(s)
Authentication Method	Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards	CE, FCC Class A certified, UL, TUV GS, cUL, EN 60950, NOM, VCCI Class A ITE, IEC 60950, EN55022 Class A, UL 60950 Third Edition, CB, AS/NZ 3548 Class A
